Off-road range

MEDIUM MOBILITY VEHICLE - ROAD AND OFF-ROAD OVER SELECTED TERRAIN

OVERWING AND UNDERWING REFUELLING

HOSES

1 x 1000 Lpm x 20 m and 1 x 250 Lpm x 20 m | Overwing and underwing nozzles

COMPATIBILITY

Jet A, Jet A-1, AVGAS 100LL, F18, F34, F35, F44, JP5, JP8

DIMENSIONS

10 m x 3.5 m x 2.5 m

CHASSIS

6 x 4 Off-road range | Euro 3

TANK

20 000L - Aluminium - Torsion free

PAINTING

White 9010, Yellow, OTAN green | Protected against corrosion

GUIDELINES

STANAGs | Public Roads

OPTIONS

Defuelling | Trailer | EN12312-5 / JIG | ADR compliant | Legal Metrology MID | Extreme temperatures | Euro 6 | More options on request

combat proven

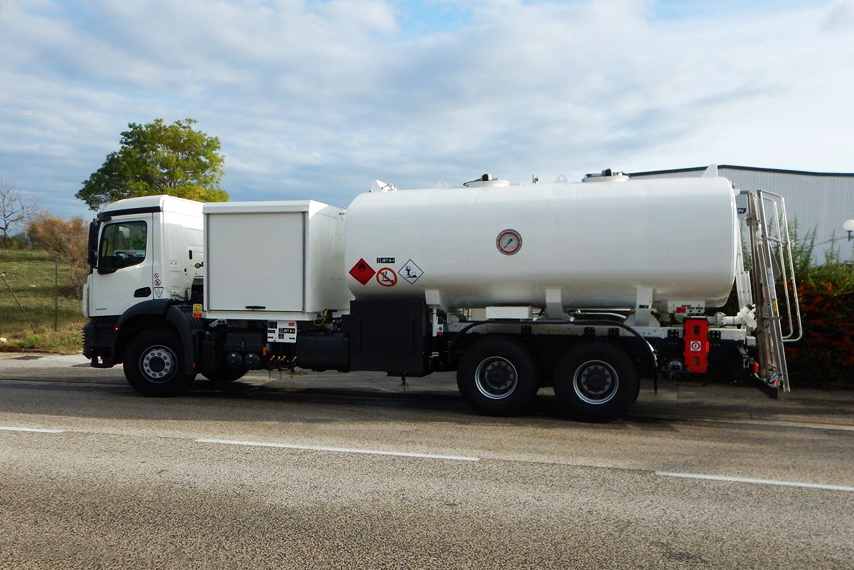

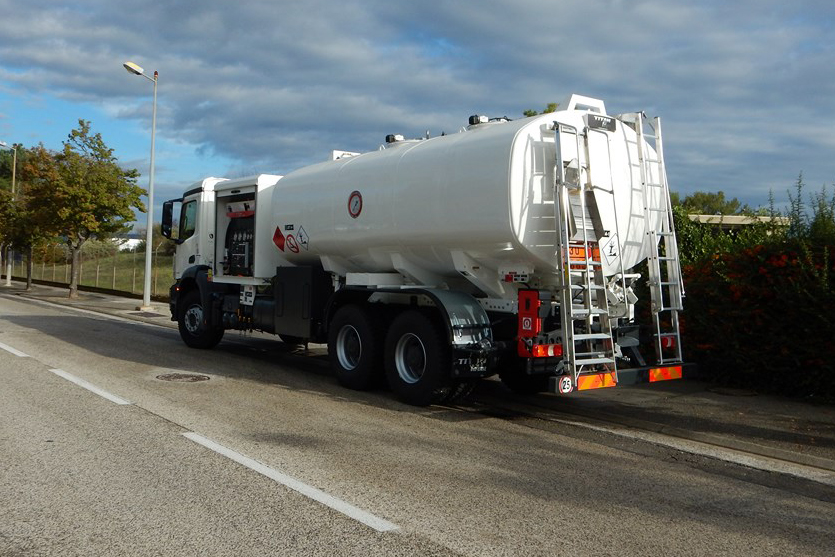

The TITAN-RR20 aircraft refueller is a versatile high-capacity refueller that allows refuelling by underwing and overwing nozzles. It will be comfortable on base camp and off-road.

The refueling truck is compatible for military or civil refueling. It is approved for driving on the road and can also be driven off-road, thanks to a 6 x 4 chassis and a "torsion free" tank.

TITAN DEFENSE assets
interopérabilité

CIVIL & MILITARY COMPATIBILITY

easy maintenance

EASY MAINTENANCE

ergonomie

EASY TO USE

DESIGN MODULAIRE

MODULAR DESIGN

FLOW RATE

HIGH FLOW RATE
