airport

AIRPORT VEHICLE

 Underwing refuelling

HOSES

2 x 1500 Lpm deck hoses and 1 x 1000 Lpm x 25 m | 3 underwing nozzles

COMPATIBILITY

JET A-1, F34, F35, JP8

DIMENSIONS

8 m x 2.5 m x 2.5 m

CHASSIS

4 x 2 White fleet | Euro 3

PAINTING

White 9010, Yellow, OTAN green | Protected against corrosion

GUIDELINES

JIG 12 | EN123112-5 | STANAGs | NFPA407 | API/IP

OPTIONS

Euro 6 | Legal Metrology MID | EZ Control ® | More options on request

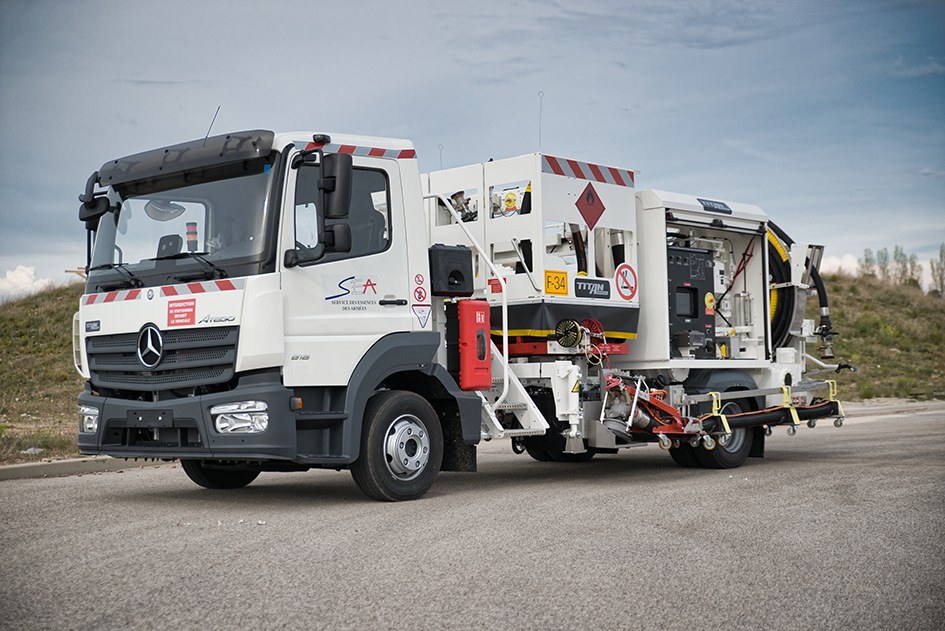

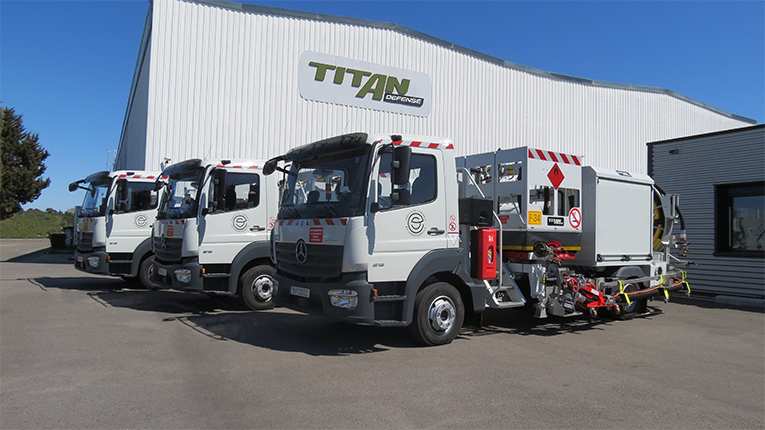

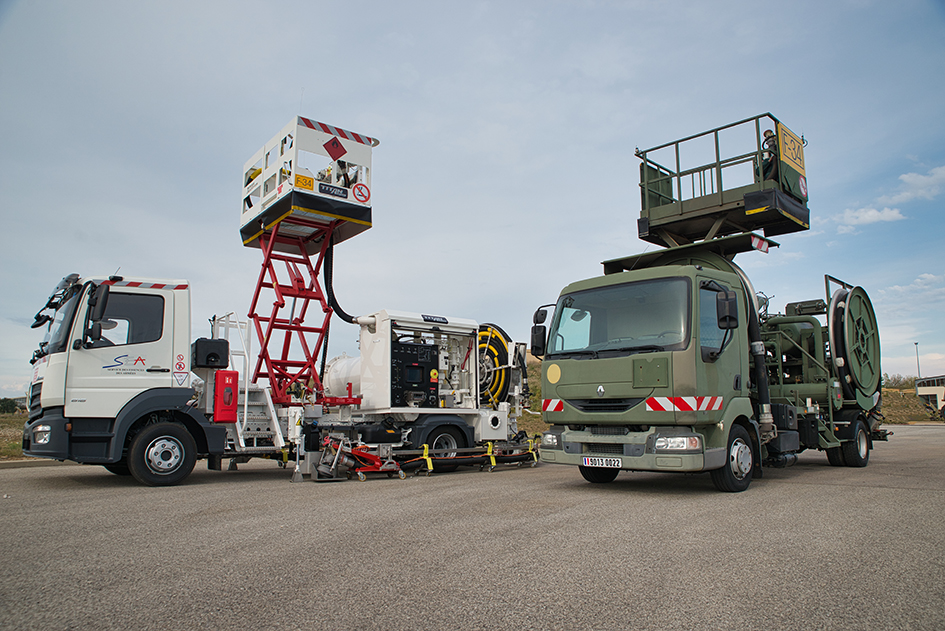

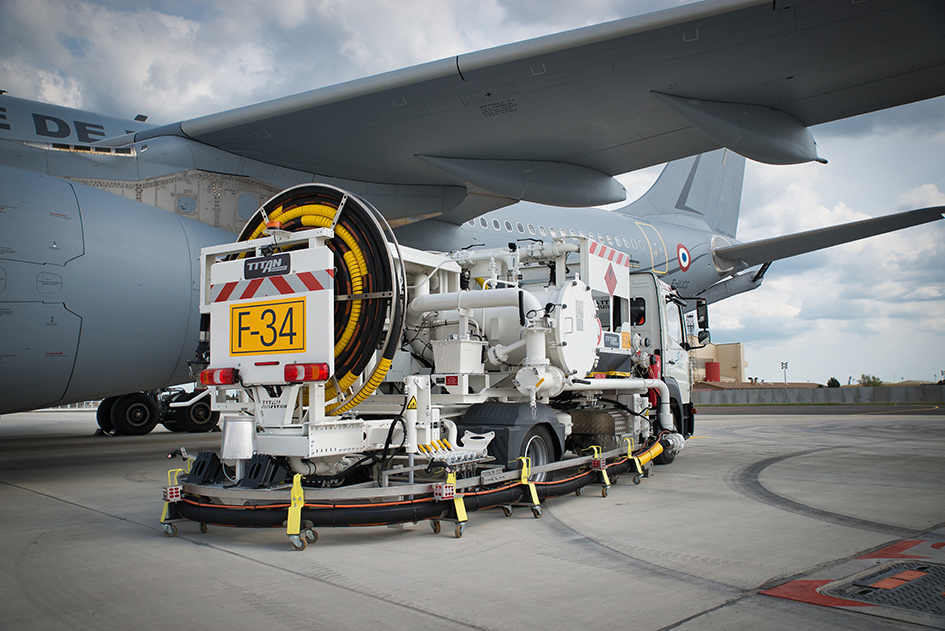

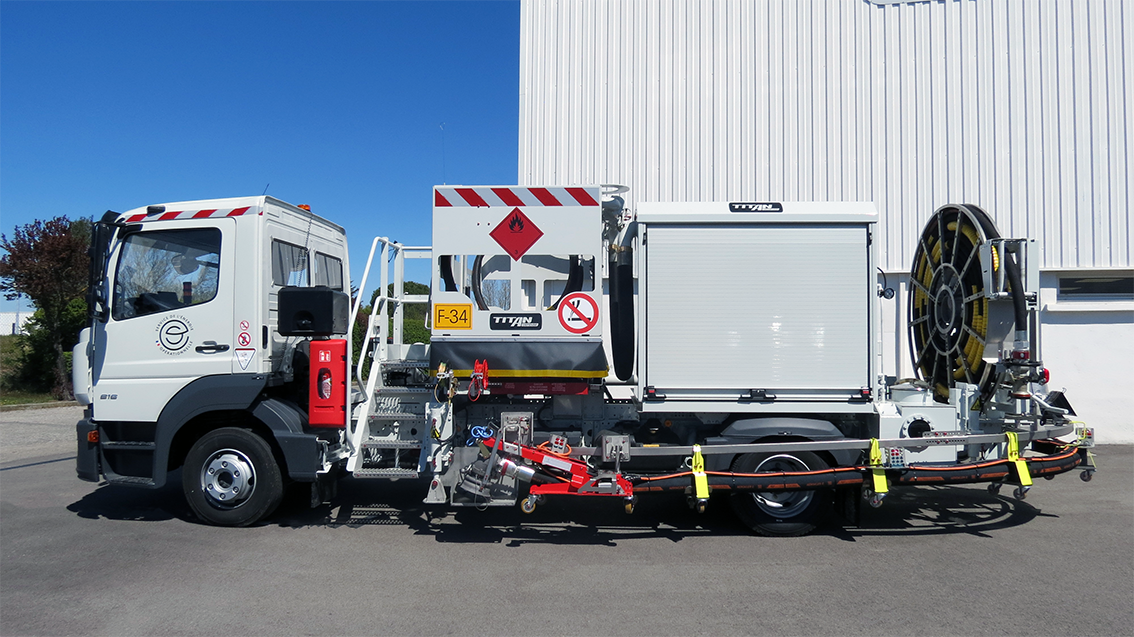

The TITAN DEFENSE hydrant dispenser concentrates all the latest advances in high flow rate refueling for hydrant airports. It is used daily on all types of military aircraft, in particular in-flight refueling (type A330MRTT, KC135). Commercial refueling is possible because all EN and JIG safety standards are taken into account from the design stage. Dozens of similar units operate daily at international airports.
TITAN DEFENSE assets
interopérabilité

CIVIL & MILITARY COMPATIBILITY

easy maintenance

EASY MAINTENANCE

ergonomie

EASY TO USE

DESIGN MODULAIRE

MODULAR DESIGN

FLOW RATE

HIGH FLOW RATE

Expert in customized projects

Your request is more specific ?

Send us your specification for any non-standard project.
